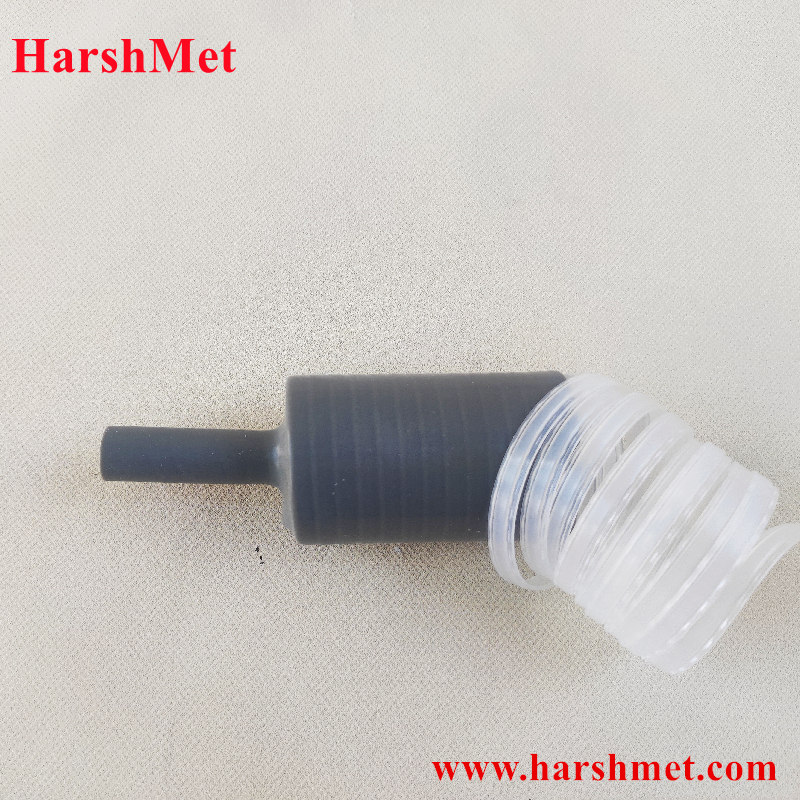

High Performance Cold Shrink Tube
Model CST12MDN for 7/16 DIN or N Type Connectors
Description
HarshMet CST12MDN/CST12MDN+ Series provide the correct Cold Shrink tubing to make the installation and weather protection of 7/16 DIN or N type connectors easy. The installation does not require tooling, and the quality of the installation is less installer dependent
Application
The main application is the sealing of coax connectors used in the wireless communication antenna market. These mainly outside installed connectors require an extra sealing.
Technical Information
The outer Cold Shrink tube is made from high performance EPDM / Silicone rubber material to provide an excellent seal on the connector. In cases where the different coax cable diameter can not be covered with the tube application range, a special foam is used to increase the smallest cable diameter to fit the shrink performance of the Cold Shrink tube. The kits passed the .5 bares water pressure sealing test and met IEC60529 IP 68
Features
² Operating Temperature :-60 ℃~+200 ℃
² Shrink ratio: 4:1 - 5:1
² Colors:Black or Grey
² UV and Ozone resistant
² Superior tear resistant
² Acid and alkalis resistant
Sealing Class: IP68
Selection Table
|
P/N |
Appication Range |
Length |
RF Connections |
Connector Types |
Material |
Diameter Building-up Foam Tape |
|
CST-SMA |
4-10mm |
125mm/ 60mm |
LMR195 to Device |
SMA/Nex10 |
Modified Silicone Rubber |
W/O |
|
CST14MD |
7.4-24mm |
125mm |
1/4” to Antenna, RRU or Other Devices |
Mini Din 4.3/10 and 4.1/9.5 and N type Only |
Modified Silicone Rubber |
W/O |
|
CST14MD-S |
7.4-24mm |
110mm |
1/4” to Antenna, RRU or Other Devices |
Mini Din 4.3/10 and 4.1/9.5 and N type Only |
Modified Silicone Rubber |
W/O |
|
CST14MDN |
7.4-35 |
140mm |
1/4” to Antenna, RRU, TMA or Other Devices |
7/16 DIN, Mini Din 4.3/10, 4.1/9.5 and N type |
Modified Silicone Rubber |
W/ |
|
CST14MDN-E |
7.4-35mm |
150mm |
1/4” to Antenna, RRU or Other Device |
7/16 DIN & Mini Din 4.3/10 Or 4.1/9.5 or N Type |
Modified EPDM Rubber |
W/ |
|
CST38MD |
10.6-24mm |
125mm |
3/8” to Antenna, RRU, TMA or Other Devices |
N Type, Mini Din 4.3/10 Or 4.1/9.5 Only |
Modified Silicone Rubber |
W/O |
|
CST38MD-S |
10.6-24mm |
110mm |
3/8” to Antenna, RRU, TMA or Other Devices |
N Type, Mini Din 4.3/10 Or 4.1/9.5 Only |
Modified Silicone Rubber |
W/O |
|
CST38MDN |
10.6-35mm |
140mm |
3/8” to Antenna, RRU, TMA or Other Device |
7/16 DIN, Mini Din 4.3/10 , 4.1/9.5 and N Type |
Modified Silicone Rubber |
W/O |
|
CST12MD |
13-24mm |
125mm |
1/2” To Antenna, RRU or other Devices |
Mini Din 4.3/10, 4.1/9.5 and N type Only |
Modified Silicone Rubber |
W/O |
|
CST12MD-S |
13-24mm |
110mm |
1/2” To Antenna, RRU or other Devices |
Mini Din 4.3/10, 4.1/9.5 and N type Only |
Modified Silicone Rubber |
W/O |
|
CST12MN+ |
13-28mm |
140mm |
1/2” Cable To Antenna, RRU, TMA or other Devices, 1/2” Cable to 1/2” Cable |
Mini Din 4.3/10 , 4.1/9.5 or N type Only |
Modified Silicone Rubber |
W/O |
|
CST12MDN-S |
11-35 |
130mm |
1/2” Cable To Antenna, RRU or other Devices or DC Power Connection on RRU |
7/16 DIN & Mini Din 4.3/10 Or 4.1/9.5 or N Type |
Modified Silicone Rubber |
W/O |
|
CST12MDN |
11-35mm |
140mm |
1/2” Cable To Antenna, RRU or other Devices or DC Power Connection on RRU |
7/16 DIN & Mini Din 4.3/10 Or 4.1/9.5 or N Type |
Modified Silicone Rubber |
W/O |
|
CST12MDN+ |
11-35mm |
170mm |
1/2” to 1/2”, 1/2” to Antenna, RRU Or other Devices or DC Power Connections on RRU |
7/16 DIN & Mini Din 4.3/10 Or 4.1/9.5 or N Type |
Modified Silicone Rubber |
W/O |
|
CST12MDN-B |
12-39 |
130mm |
1/2” - 7/8” to Antenna , RRU Or other Devices |
7/16 DIN & Mini Din 4.3/10 Or 4.1/9.5 or N Type |
Modified Silicone Rubber |
W/O |
|
CST-E1258 |
11-39mm |
250mm |
1/2” to 1/2” , 1/2” to 5/8” , 5/8” to 5/8” Cable |
7/16 DIN & Mini Din 4.3/10 Or 4.1/9.5 or N Type |
Modified EPDM Rubber |
W/ |
|
CST-S1258 |
11-39mm |
250mm |
1/2” to 1/2” , 1/2” to 5/8” Cable, 5/8” to 5/8” Cable |
7/16 DIN & Mini Din 4.3/10 Or 4.1/9.5 or N Type |
Modified Silicone Rubber |
W/O |
|
CST-1278 |
13-45mm |
250mm |
1/2” Cable to 7/8” , 5/8” to 7/8” , 7/8” to 7/8” |
7/16 DIN & Mini Din 4.3/10 Or 4.1/9.5 or N Type |
Modified EPDM Rubber |
W/ |
|
CST-S1278 |
13-35 |
240mm |
1/2” Cable to 7/8” , 5/8” to 7/8” , 7/8” to 7/8” |
7/16 DIN & Mini Din 4.3/10 Or 4.1/9.5 or N Type |
Modified Silicone Rubber |
W/O |
|
CST-S12114 |
15-50 |
330mm |
1/2” Cable to 1-1/4” , 5/8” to 1-1/4” , 1-1/4” to 1-1/4” |
7/16 DIN & Mini Din 4.3/10 Or 4.1/9.5 or N Type |
Modified Silicone Rubber |
W/O |
|
CST-12114 |
15-50 |
330 |
1/2” Cable to 1-1/4” , 5/8” to 1-1/4” , 1-1/4” to 1-1/4 |
7/16 DIN & Mini Din 4.3/10 Or 4.1/9.5 or N Type |
Modified EPDM Rubber |
W/ |
|
CST-12158 |
13-63mm |
330mm |
½” to 1 1/4” or 1 5/8”, 5/8” to 1 1/4” or 1 5/8” |
7/16 DIN & Mini Din 4.3/10 Or 4.1/9.5 or N Type |
Modified EPDM Rubber |
W/ |
Note: Any other sizes needed, welcome to contact us at sales@harshmet.com
